Hot Product

PG-EC-01

1. Control and regulation of industrial processes 2. Monitoring of plants and switching of circuits 3. For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts



Product Features:
  • Nominal size(mm): 63; 100; 150
  • Accuracy: 1.6% or 2.5%
  • Two Switch Contacts: Double upper; double lower; one upper and one lower
  • Connection thread: Thread: Thread: 1/8; 1/4; 3/8; 1/2 (G PT NPT); M14*1.5; M20*1.5

Product Detail

Product Tags

Model

PG-EC-01

Description

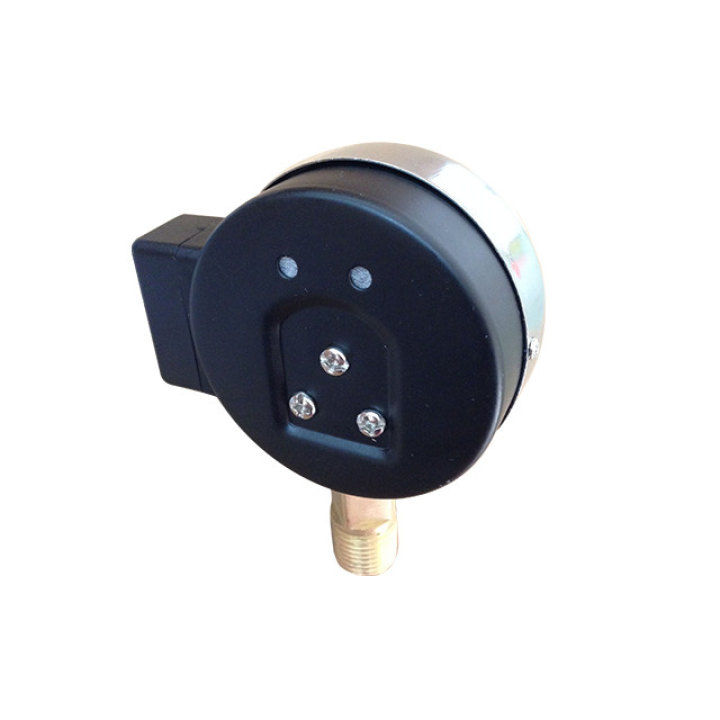

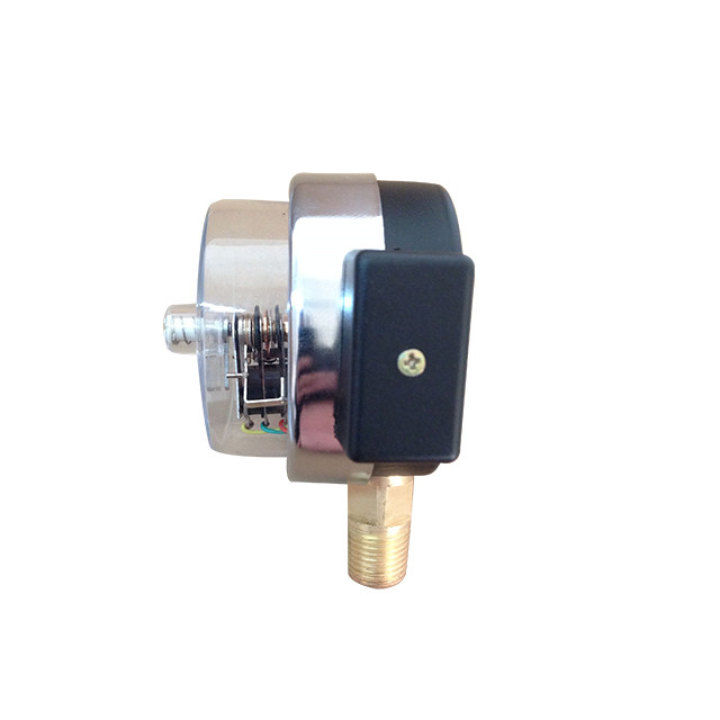

Pressure gauge with switch contacts

Nominal size in mm

63

Accuracy class

1.6 or 2.5

Scale ranges

-1~600bar

Permissible temperature

Ambient: -20~+60℃  Medium: +60℃

Contacts limit

Double upper; double lower; one upper and one lower

Contact electrical parameters

30VA, 1A(MAX) DC220V, AC380V

Process connection

Copper alloy

Connection thread

1/8; 1/4; 3/8; 1/2 (G PT NPT); M14*1.5; M20*1.5

Bourdon tube

Phosphor Bronze

Movement

Copper alloy

Case

Black steel

Bezel

Black steel

Window

Plexiglass

Dial

Aluminum (customized logo)

Pointer

Aluminum, black
