CT-01

This series of thermometers is universally suitable for machine building, refrigeration and air-conditioning industry. Expansion thermometers can be installed in or mounted at nearly all locations. Versions with capillaries are used in locations which are not easily accessible and where long distances have to be bridged.




Product Features:
  • Range: -20~600℃
  • Nominal size: 150mm
  • Accuracy class: 1.5
  • Material: all SS
  • Thread: 3/8; 1/2( customable )

Product Detail

Product Tags

Model

CT-01

Description

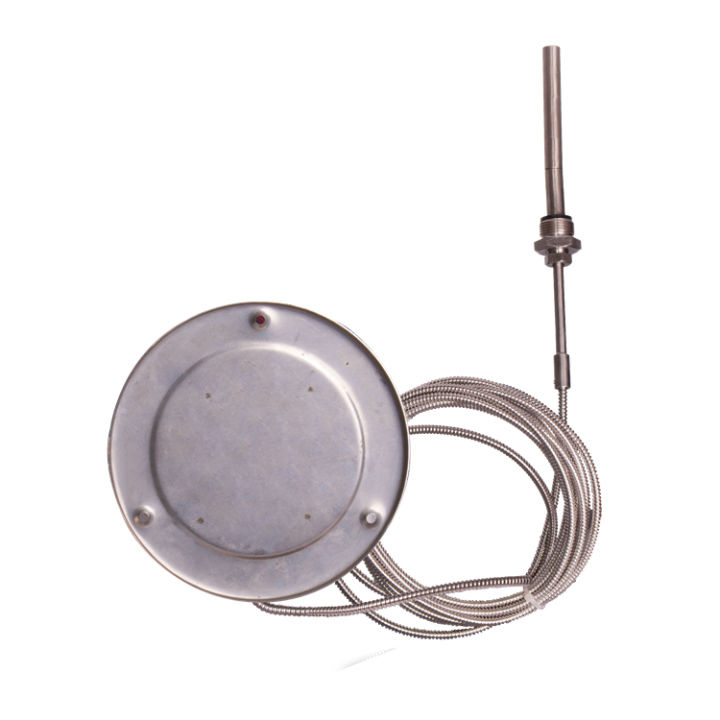

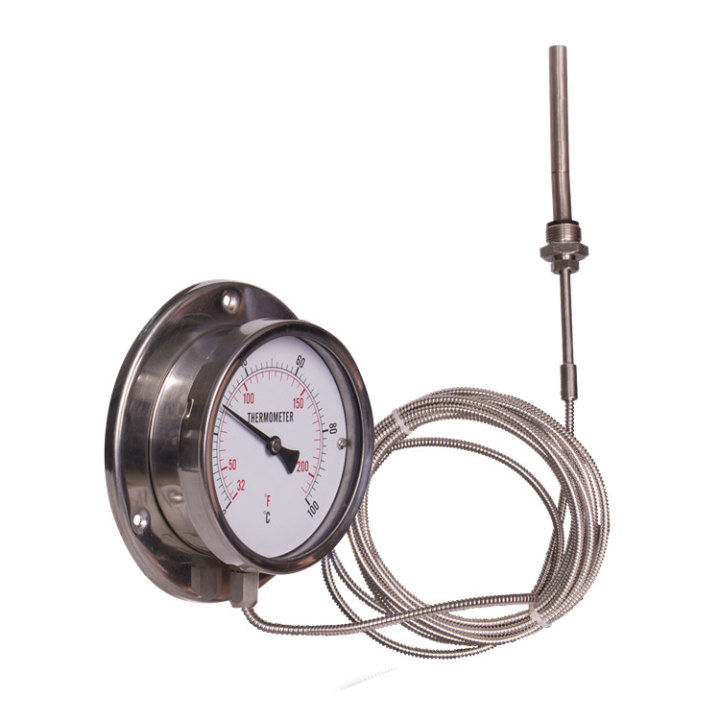

Capillary thermometer

Nominal size in mm

150mm

Accuracy class

1.5

Scale ranges

-20~600℃ (customized)

Mount type

Bottom connection

Connection thread

3/8;1/2 (G PT NPT)

Movement

copper

Wire & Stem

Customizable

Case

S.S 304

Bezel

S.S 304

Window

Glass

Dial

Aluminum (customized logo)

Pointer

Aluminum, black
