BT-02

General process instrumentation in the chemical and petrochemical industries, oil and gas industries, energy and water industries; temperature measurement in harsh and aggressive environments.



Product Features:
  • Range: -20~600℃
  • Nominal size: 63mm
  • Accuracy class: 1.5
  • Material: all SS
  • Thread: 3/8; 1/2( customable )

Product Detail

Product Tags

Model

BT-02

Description

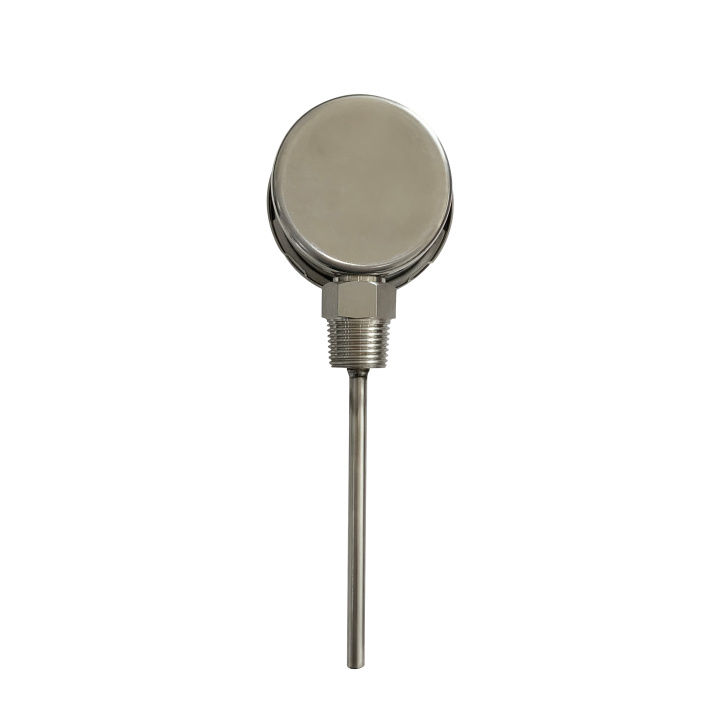

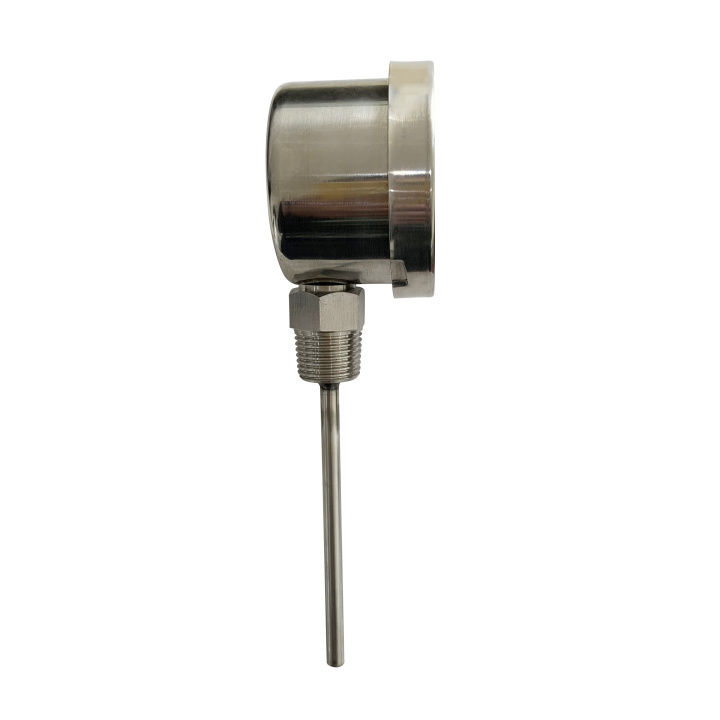

Bimetallic thermometer

Nominal size in mm

63mm

Accuracy class

1.5

Scale ranges

-20~600℃ (customized)

Mount type

Bottom connection

Connection thread

3/8;1/2 (G PT NPT)

Movement

Bi-metallic coil (imported from Japan)

Stem

Customizable length & diameter

Case

S.S 304

Bezel

S.S 304

Window

Glass

Dial

Aluminum (customized logo)

Pointer

Aluminum, black
